Deco 3D wall panels are relief panels made from solid surface, with a three-dimensional pattern across the whole face. The line has nine designs in two size families: five patterns coded DEC-101 to DEC-105 and four coded DEC-211 to DEC-214. Three of the patterns are also made as backlit panels, lit by an LED strip on the frame behind them.
Nine 3D solid surface panel patterns
| Code | Pattern | Backlit version |
|---|---|---|
| DEC-101 | Vine | Yes |
| DEC-102 | Banana Leaf | – |
| DEC-103 | Waterfall | Yes |
| DEC-104 | Water Ripple | Yes |
| DEC-105 | Curtain | – |
| DEC-211 | Sea Wave | – |
| DEC-212 | Rain | – |
| DEC-213 | Chess | – |
| DEC-214 | Bamboo | – |
Panel sizes: catalogue figures, confirmed with the order
The manufacturer’s documents give slightly different sizes, so we show them as they appear:
- DEC-101 to DEC-105: 2320 × 930 × 10 mm in the catalogue. Another leaflet gives 2350 × 930 × 10 mm.
- DEC-211 to DEC-214: 2400 × 1200 × 10 mm.
- Backlit Vine: the leaflet gives a thickness of 6–12 mm.
- Installation drawings show panels of about 12.5 mm.
Don’t fix the wall setting-out from these figures alone. The final panel size, thickness and pattern repeat are confirmed with the order, and we send the drawing for the chosen design before production.
Backlit 3D wall panels
Vine, Waterfall and Water Ripple come in backlit versions. The manufacturer’s catalogue shows an LED strip fitted to the frame behind the panel, a mains supply (the catalogue shows 220 V) and RGB controllers for colour changes. Judge the lit effect on a sample or photos before you commit, because the relief shapes how the light reads.
The electrical design, driver location and access for maintenance are part of the fit-out. Plan them with your electrician to the rules of the country of installation. For backlit counters and flat translucent walls, see Kristall translucent and reception and bar counters.

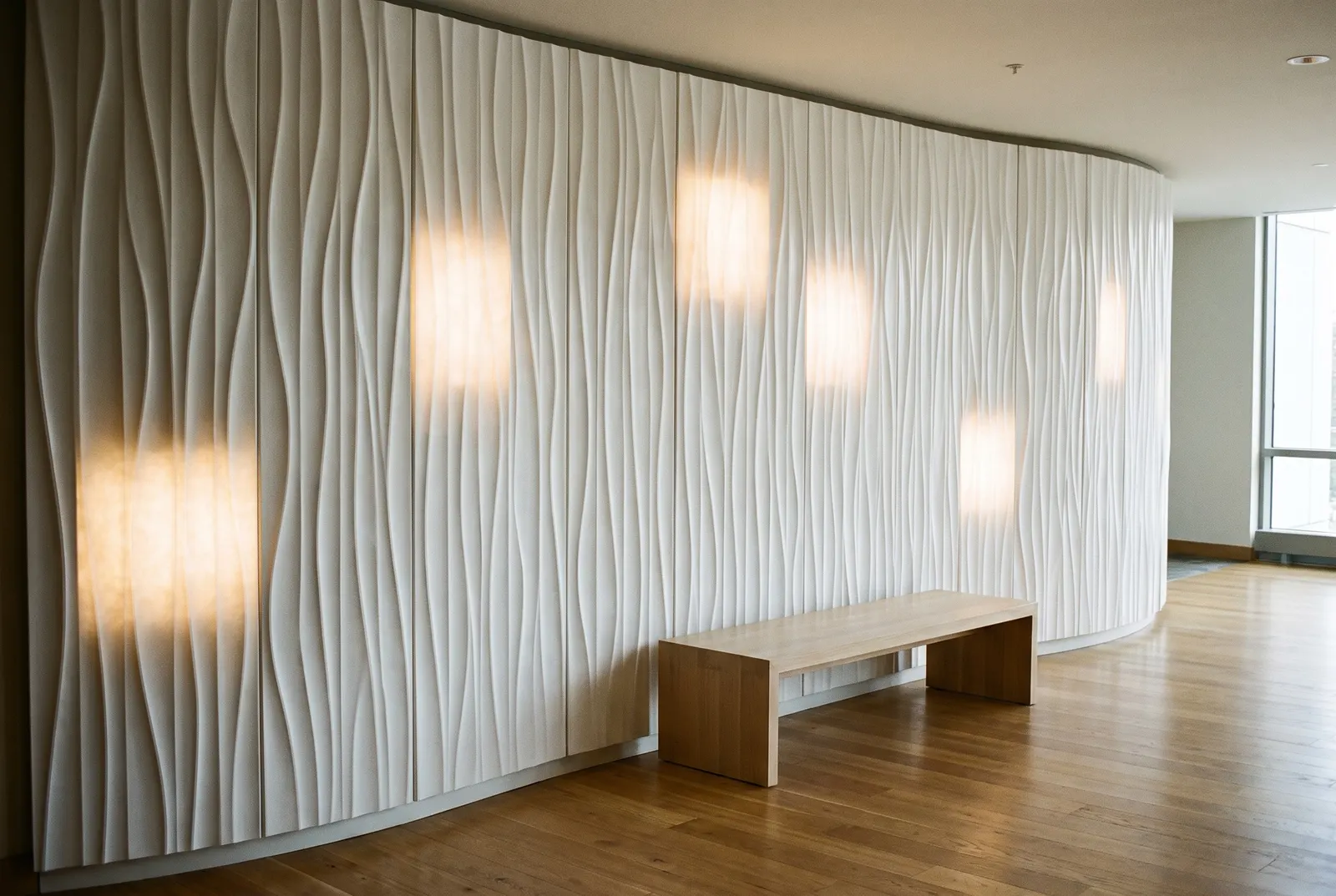

Where decorative wall panels work in hotels and commercial interiors
The manufacturer suggests cafés, restaurants, gyms, spas, nightclubs, offices, homes, kindergartens and schools. In commercial fit-out, the typical uses are:
- a feature wall behind a hotel reception or bar;
- a spa or changing-area feature wall;
- retail walls behind a counter or display, where a backlit pattern carries the brand.
The panels are for indoor use. The manufacturer’s warranty terms for solid surface exclude outdoor and unheated installations.
Fixing and joints
The installation drawings show panels fixed to the wall with silicone and finished with R3 mm rounded edges. For walls of several panels, ask for the layout drawing: the pattern repeat and the joint positions are confirmed on the order drawing.
Want to judge the relief and the light before you commit? Ask for a sample or photos of the pattern through the samples page.
